ECC-Air

產品型號：ECC-Air

Test cell for the electrochemical characterization of gas diffusion electrodes in aprotic electrolytes

•Fast assembly and dismantling and easy cleaning of cell components
•Small and defined electrolyte volume down to 0.05 cm3
•Electrodes are easily accessible for post-mortem analysis

分享：

加入洽詢

產品特點
規格

Test cell for characterization of gas diffusion electrodes in aprotic electrolytes

Product description
The ECC-Air is another member of the modular ECC-series dedicated to the electrochemical characterization of gas diffusion electrodes in aprotic electrolytes, e.g. for lithium-air batteries.

Basically, the upper diffusion type electrode is contacted by and “breathes” through the perforated stainless steel current collector (plate) on top. The gas volume inside the cell above the perforated plate is accessible via a port in the cell lid. The design includes a reference electrode.

Gallery

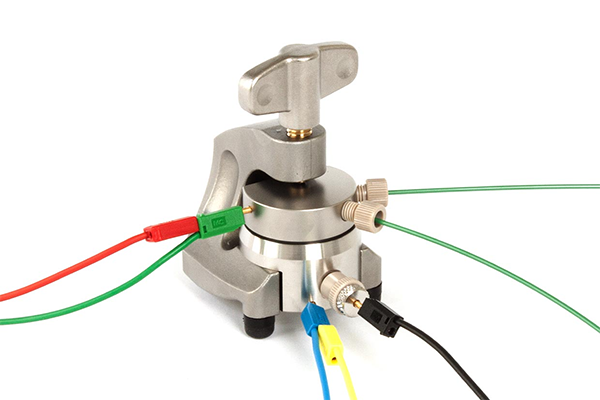

02-04-ECC-Air-01

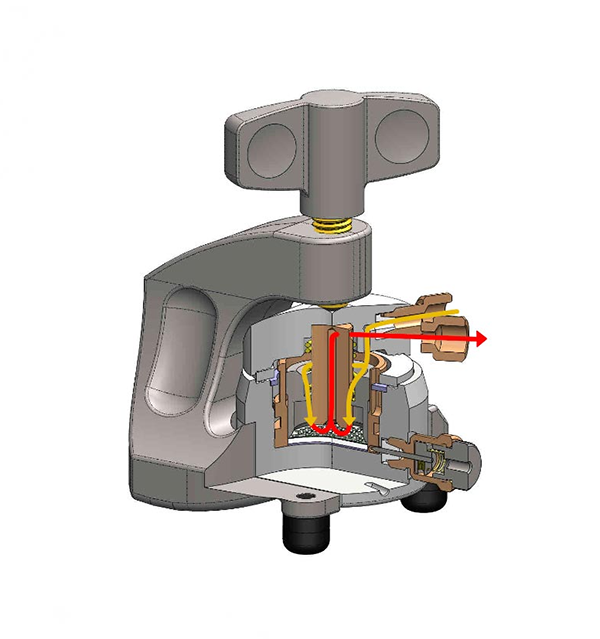

02-04-ECC-Air-02

Height	90 mm
Width	54 mm
Depth	76 mm
Weight	0.6 kg
Temperature resistance:	-20 to +70°C (150°C)*
Electrode diameter	18 mm
Electrolyte volume min	0.1 ml

*with optional Heat Resistance Set ECC1-01-0040-A

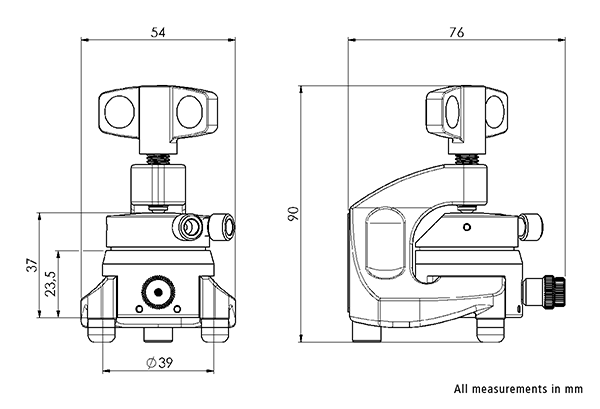

02-04-ECC-Air-03
