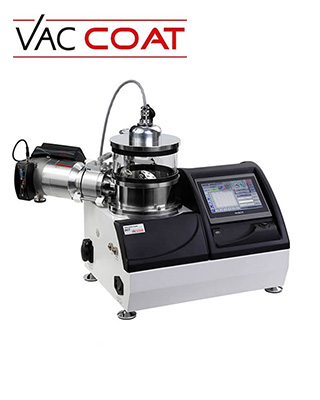

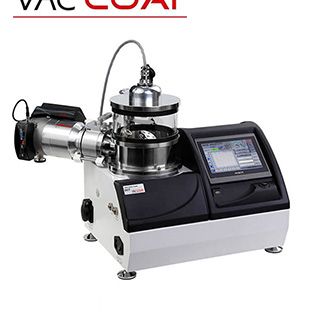

渦輪泵碳塗佈機

TURBO-PUMPED CARBON COATER

產品型號：DCT

DCT 是一種渦輪泵送碳塗佈機，是 FE-SEM、EDS/WDS、TEM、EBSD 和薄膜應用的理想之選。這種高真空碳塗佈機可提供晶粒細小的高品質均勻碳膜，適用於需要高解析度和高品質表徵的樣品。

分享：

加入洽詢

產品特點
規格
Features
Specification

DTE 是一種台式熱蒸鍍系統，用於在基底上沉積薄層材料，以進行研究和電子顯微鏡調查。DTE 被配置為適用於樣品蒸鍍實驗的材料蒸鍍器。這種低成本、小腔室和高真空系統非常適合惰性金屬和氧化金屬的短時間沉積。

觸控式螢幕操控

台式碳塗佈機配備了 7”彩色觸控螢幕，具有全自動控制和數據輸入功能，即使沒有經驗的用戶也能操作。真空、電流和沈積訊息可通過觸控螢幕上以數值資料或曲線的形式顯示。最後 300 次濺鍍資訊都可儲存在歷史紀錄頁上。

真空碳塗佈機樣品支架

渦輪泵碳塗佈機可根據使用者要求配備不同的樣品台配置。樣品台可旋轉，高度可調且易於更換。旋轉式行星樣品台是多孔試樣均勻塗層的不錯選擇。

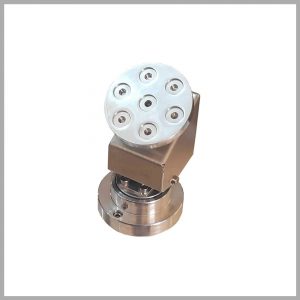

Vac-product-DSR1-Sample-Planetary-Rotation-without-Device-Square-Grey-Big-Border-300x300

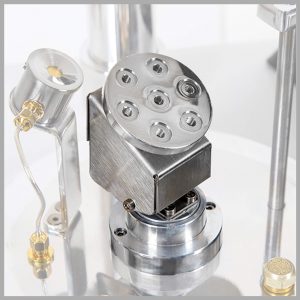

Vac-product-DSR1-Sample-Planetary-Rotation-Square-Grey-Big-Border-2-300x300

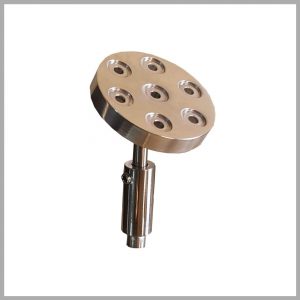

Vac-product-DSR1-Sample-Rotation-without-Device-Square-Grey-Big-Border-300x300

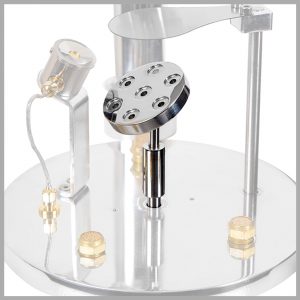

Vac-product-DSR1-Sample-Holder-Square-Grey-Big-Border-2-300x300

渦輪泵碳塗佈機的特點

用於即時厚度測量的石英晶體監測系統（精度為 1nm）。
脈衝或閃蒸碳纖維塗佈模式。
視覺式的觸控螢幕可良好控制和監控塗佈過程，並能快速輸入數據。
友善的用戶軟體介面，並可通過網路更新。
可記錄和繪製塗佈參數圖。
易於更換的試樣台（旋轉台形式為標準配置）。
符合 CE 標準。
Vac coat 產品在全球範圍內都有公共和產品責任保險，以防 Vac coat 系統造成任何財產損失或人身傷害。

High vacuum turbo pump 90 l/s (Leybold)
Two stage rotary vane vacuum pump as a backing pumps
Full range vacuum gauge (Leybold)
170 mm OD x 140 mm vacuum chamber
0-25 A switching pulsed DC power supply
Ultimate Vacuum: Less than 7 x10-7 torr
Dimensions: 450 x 500 x 370 mm(H * W & D)
Utilities: 220V-240V, 50/60HZ, 10A
Intuitive touch screen with colored display unit
Sample holder with planetary rotation
Plasma Cleaning
Electronic shutter
Automatically controlled coating independent of pressure
Precision metering valve for fine control of vacuum pressure
Real time plots of coating parameters
Simple transfer of coating data plots via USB port to PC
Shipping Weight: 46 Kg

Options and Accessories

Desk carbon coater – DCT has the following options and accessories:

Head and power supply for carbon rod
Quartz crystal sensor
Planetary sample rotation
Spare vacuum glass chamber
Carbon fiber
Sealing gaskets

DCT is a Turbo-Pumped Carbon Coater that is ideal for FE-SEM, EDS/WDS, TEM, EBSD, and thin film applications. This high vacuum carbon coater offers high quality uniform carbon films with fine grain sizes which are suitable for specimens that require high resolution and high quality characterization.

Touch Screen Control

The Desk Carbon Coater is equipped with a 7” colored touch screen with full automatic control and data input that can be operated by even inexperienced users. The vacuum, current and deposition information can be monitored as digital data or curves on the touch screen. The last 300 coatings information can be detected in the history page.

Sample Holder of Vacuum Carbon Coater

The turbo-pumped carbon coater can be equipped with different sample stage configurations depending on the user requirements. The sample stages are rotatable with adjustable height and easy to change. The rotary planetary sample stage is a good choice for uniform coating of porous specimens.

Features of Turbo-Pumped Carbon Coater

Quartz crystal thickness monitor with precision of 1nm and resolution of 1nm.
Pulsed or flash carbon fiber coating modes
Intuitive touch screen to control and monitor the coating process with a capability of rapid data input
User friendly software that can be updated via network
Able to record and plot coating parameters graphs
Easy-to-change specimen stages (rotation stage as standard)
Two-year warranty
CE conformity
Vac coat Products are covered worldwide by both public and product Liability Insurance in case any property damage or personal injury happens caused by the Vac Coat systems.
