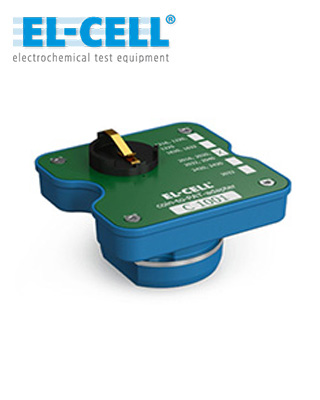

Coin-PAT-Adapter

產品型號：Coin-PAT-Adapter

Adapter for using a button cell in a PAT series docking station or potentiostat

分享：

加入洽詢

產品特點
規格

Adapter for using a button cell in a PAT series docking station or potentiostat

Product description
The Coin-PAT-Adapter enables the operation of conventional 2-electrode coin cells in the PAT system. In contrast to the universal 3E-Coin-PAT-Adapter, this adapter can only accept coin cells with a specific diameter. Therefore different versions are available for button cells with 12, 16, 20, 24 and 30 mm diameter.

In addition, the adapter features automatic cell detection in all EL-CELL potentiostats. When plugged into a PAT battery tester, it is identified by its electronic signature and displayed in EL-Software.

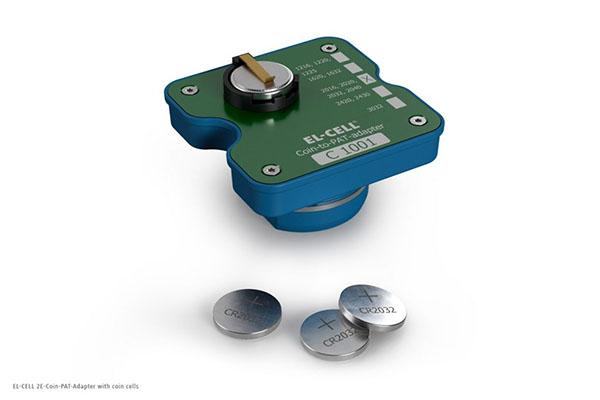

08-05-Coin-01

Coin-PAT-Adapter
Height		42 mm
Width		68 mm
Depth		68 mm
Max. diameter of coin cell	Coin-PAT-Adapter 12	12 mm
	Coin-PAT-Adapter 16	16 mm
	Coin-PAT-Adapter 20	20 mm
	Coin-PAT-Adapter 24	24 mm
	Coin-PAT-Adapter 30	30 mm
Max. height of coin cell		4 mm

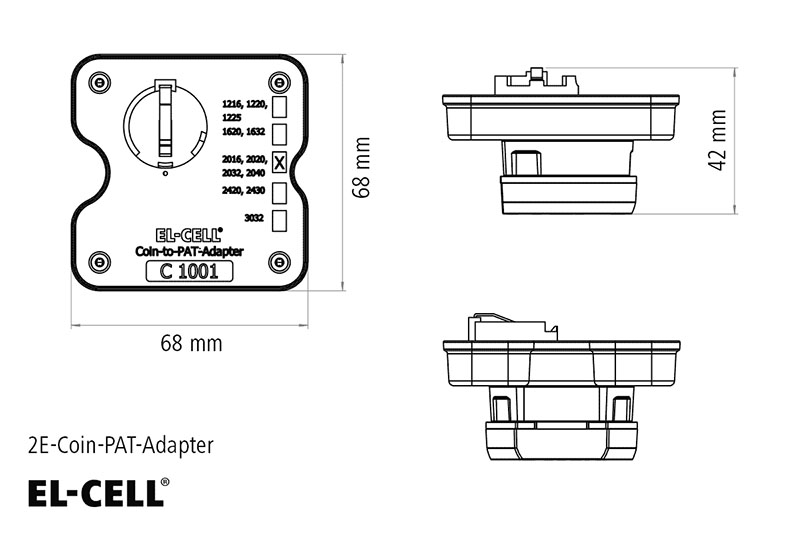

08-05-Coin-02
