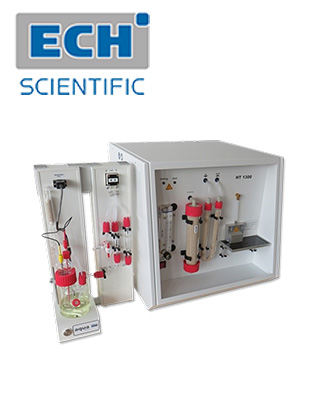

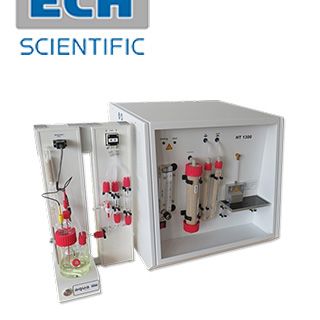

High Temperature Oven HT 1300 is an extension module with high performance for the AQUA 40.00 for extracting the water from samples which release the water at higher temperatures.
A special valve system transports the sample into the oven without interrupting the carrier gas circulation. An internal drying of the carrier gas in 2 steps realizes a low background drift.
Samples are fed into small sample boats into the heat area of the oven. The working temperature is up to 1300 °C. Therefore, chemical reactions forming water as a reaction product can be controlled.
Applications
- Inorganic salts
- Building materials
- Metals and alloys
- Molecular sieves
- Oxides/hydroxides
- Cement
Advantages
- High temperature heating for trace amounts of water
- Direct connection to the AQUA 40.00 basic module
- Easy-to-use AQUA 40.00 software with extension to control high temperature oven
- Using of isothermal heating or temperature program
- No sample preparation
| Heating temperature: | 300 ... 1300 °C |
| Sample amount: | Up to 3000 mg |
| Sample feeding: | Sample boats made of ceramic or quartz glass (depending on working temperature) |
| Carrier gas: | Nitrogen or argon |
| Temperature control: | From software of AQUA 40.00 |
| Heating procedure: | Isothermal or temperature program, free adjustable |
| Power supply: | 115 or 230 V, 50 ... 60 Hz |
| Dimensions: | 450 x 500 x 550 mm (w x h x d) |
| Weight: | 25 kg |
