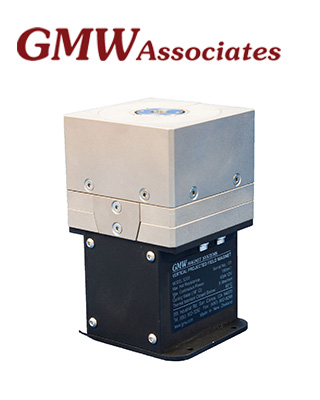

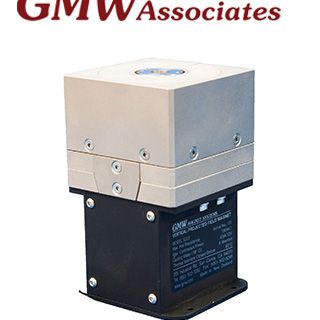

電磁鐵／線圈磁鐵 5203
•寬敞的工作環境
•體積小重量輕方便安裝在任何空間
•最大磁場：±0.5T （與z軸位置有關）
•電源供應：±100A, ±20V
•系統包含：電源、水冷、溫度interlock、操作軟體
•可自由編輯供應磁場的大小、波型、時間
•更可以自行定義實驗集
•在大電流的供應中，定溫度Interlock確保實驗的安全
•可搭配GMW定位控制系統，能精準控制x,y,z,θ
•提供垂直於表面的磁場(Bz)
•寬敞的工作環境
•體積小重量輕方便安裝在任何空間
•最大磁場：±0.5T （與z軸位置有關）
•電源供應：±100A, ±20V
•系統包含：電源、水冷、溫度interlock、操作軟體
•可自由編輯供應磁場的大小、波型、時間
•更可以自行定義實驗集
•在大電流的供應中，定溫度Interlock確保實驗的安全
•可搭配GMW定位控制系統，能精準控制x,y,z,θ
|
Dimensions |
74mm W x 74mm D x 123.5mm H (2.91 inch w x 2.91 inch D x 4.86 inch H) |
|
Weight (excluding hoses and water) |
2.5 kg (5.2 pounds) |
|
Pole Face Diameter |
24.4mm (0.96 inch) |
|
Coils (series connected) |
|
|
Resistance (20°C) |
173 mΩ |
|
Max. Resistance (80°C) |
240 mΩ |
|
Max. continuous current |
63 A |
|
Max Peak Current |
100 A |
|
Max. continuous Power |
750 W |
|
Max Peak Power |
2000 W |
|
Low Field Inductance |
3500 µH |
|
High Field Inductance |
895 µH |
|
Ramp Rate (0-0.5T, linear B vs t) |
0.1 seconds |
|
Ramp Rate (0-0.5T, non-linear B vs t) |
0.01 seconds |
|
Water Cooling (supply 18°C @ 15 psi) |
Up to 8 Litre/min |
|
Anticipated max. sinusoidal frequency (0.5T) |
10 Hz |
|
Over Temperature Interlock |
80 °C |
The 5203 Electromagnet is a projected field magnet providing uniform field at a location above the magnet surface. It is intended for applications where the space around the working volume needs to be freely accessible.
Poles are interchangeable and are available with an axial access bore. The 5203 can be mounted in any orientation and light weight (2.5kg) allows the magnet to be integrated into dynamic applications such as wafer testing
|
Dimensions |
74mm W x 74mm D x 123.5mm H (2.91 inch w x 2.91 inch D x 4.86 inch H) |
|
Weight (excluding hoses and water) |
2.5 kg (5.2 pounds) |
|
Pole Face Diameter |
24.4mm (0.96 inch) |
|
Coils (series connected) |
|
|
Resistance (20°C) |
173 mΩ |
|
Max. Resistance (80°C) |
240 mΩ |
|
Max. continuous current |
63 A |
|
Max Peak Current |
100 A |
|
Max. continuous Power |
750 W |
|
Max Peak Power |
2000 W |
|
Low Field Inductance |
3500 µH |
|
High Field Inductance |
895 µH |
|
Ramp Rate (0-0.5T, linear B vs t) |
0.1 seconds |
|
Ramp Rate (0-0.5T, non-linear B vs t) |
0.01 seconds |
|
Water Cooling (supply 18°C @ 15 psi) |
Up to 8 Litre/min |
|
Anticipated max. sinusoidal frequency (0.5T) |
10 Hz |
|
Over Temperature Interlock |
80 °C |
