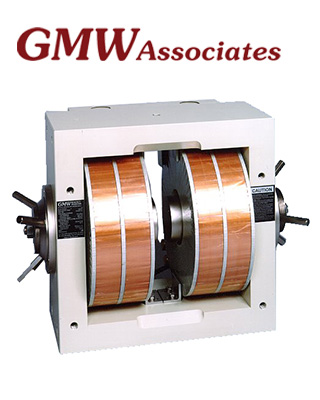

偶極電磁鐵
•根據磁場強度、操作空間有多種pole face可以選擇
•最大磁場：±3T （與gap有關）
•電源供應：±70A, ±50V
•系統包含：電源、水冷、溫度interlock、操作軟體
•可自由編輯供應磁場的大小、波型、時間
•更可以自行定義實驗集
•在大電流的供應中，定溫度Interlock確保實驗的安全
•可搭配傾斜旋轉載台
- 平行線圈的磁場
- 根據磁場強度、操作空間有多種pole face可以選擇
- 最大磁場：±3T （與gap有關）
- 電源供應：±70A, ±50V
- 系統包含：電源、水冷、溫度interlock、操作軟體
- 可自由編輯供應磁場的大小、波型、時間
- 更可以自行定義實驗集
- 在大電流的供應中，定溫度Interlock確保實驗的安全
- 可搭配傾斜旋轉載台
|
總體規格 |
||
|
機型 |
3472-50 |
3472-70 |
|
極面直徑 |
100mm |
|
|
標準極頭 |
25、50、75、100mm |
|
|
極間隙 |
0～115mm |
0～82mm |
|
線圈之間的間隙 |
116mm |
82mm |
|
體積 |
寬377mm x 深233mm x 高217mm |
|
|
重量 |
325kg |
335kg |
|
串聯連接的線圈 |
||
|
電阻(20°C) |
0.59Ω |
|
|
最大的電阻 |
0.71Ω |
|
|
最大的功率(氣冷) |
20A，14V(0.3kW) |
|
|
最大的功率(水冷) |
50A，36V(1.8kW) |
70A，50V(3.5kW) |
|
自電感 |
約60mH |
|
|
水冷 |
3公升/分鐘，0.8 bar |
6公升/分鐘，2.0 bar |
|
聯鎖保護 |
||
|
過溫 |
Elmwood 3450G自動調溫器，安裝在每個冷卻板上，串聯連接， 溫度低於50°C時，接點閉合 |
|
|
水流 |
Imo/Gems FS927流量開關安裝在循環水路的出口側上。 |
|
|
最大的絕對壓力 |
10bar (150psi) |
|
|
|
每分鐘2.5公升 |
每分鐘4.0公升 |
- 詳細規格、配件、軟體及選購，歡迎洽詢。

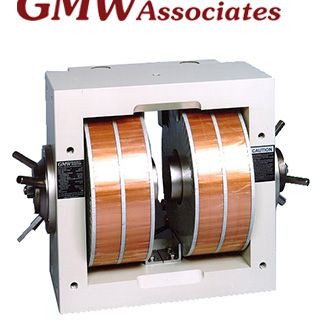

- The 3472 Dipole Electromagnet accepts a range of pole caps with face diameters up to 100mm. The model 3472-50 is fitted with a 50Amp coil pair, and has a coil gap of 115mm. The model 3472-70 is fitted with a 70Amp coil pair with enhanced cooling, and has a coil gap of 82mm. The 3472-70 is recommended when high fields are required at large pole gaps or to achieve maximum field stability for spectroscopic or similar applications.
- Features:
- Modest Size
- 50 or 70 Amp Versions
- Adjustable Pole Gap
- Wide Variety of Pole Caps
- Air or Water Cooled
- Many Mounting Options
- Applications:
- Hall Effect Studies
- Magneto-Optical Studies
- Laboratory Experiments
- Magnetic Separation experiments
- Magnetic alignment of small components
- Studying chemical reaction rate changes
|
General |
||
|
|
3472-50 |
3472-70 |
|
Pole Diameter |
100mm |
|
|
Standard Pole Caps |
25, 50, 75, & 100mm |
|
|
Pole Gap |
0 to 115mm (0 to 4.5") |
0 to 82mm (0 to 3.2 ") |
|
Intercoil Gap |
116mm (4.5") |
82mm (3.2") |
|
Dimensions |
377mm W x 233mm D x 217mm H |
|
|
Weight |
325kg (715lbs) |
335kg (737lbs) |
|
Coils (series connected) |
||
|
Resistance (20°C) |
0.59 Ω |
|
|
Max Resistance |
0.71 Ω |
|
|
Max Power (air) |
20 Amps, 14 Volts (0.3kW) |
|
|
Max Power (water) |
50 Amps, 36 Volts (1.8kW) |
70 Amps, 50 Volts (3.5kW) |
|
Self Inductance |
Approx 60mH |
|
|
Water Cooling |
3 liters/min, 0.8 bar |
6 liters/min, 2.0 bar |
|
Interlocks |
||
|
Overtemperature |
Elmwood 3450G thermostat, mounted onto each cooling |
|
|
Water Flow |
Imo/Gems FS927 flow switch mounted on outlet side of |
|
|
Maximum Absolute Pressure: |
10bar (150psi) |
|
|
|
2.5 liters per minute |
4.0 liters per minute |
- Please feel free to contact for detailed specifications, accessories, software and options.
